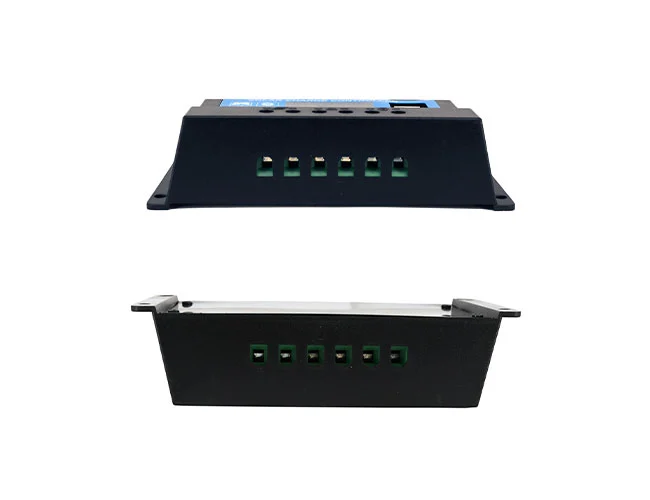

Controlador de carga solar PWM

Name: Controlador de carga solar PWM
Brand: Guangzhou Anern Energy Technology Co., Ltd

PWM refere-se à modulação por largura de pulso, o controlador solar PWM se auto-regula alterando a largura (comprimento) e a frequência dos pulsos enviados para a bateria. Na regulação PWM, a corrente do painel solar é gradualmente reduzida de acordo com a condição da bateria e as necessidades de carregamento.

Controlador de carga solar PWM com LCD embutido que adota a técnica digital mais avançada. Os múltiplos modos de controle de carga permitem que ele possa ser amplamente utilizado no sistema solar off-grid, sinais de trânsito,Luzes de rua solares, Etc.

Obtenha cotação gratuita

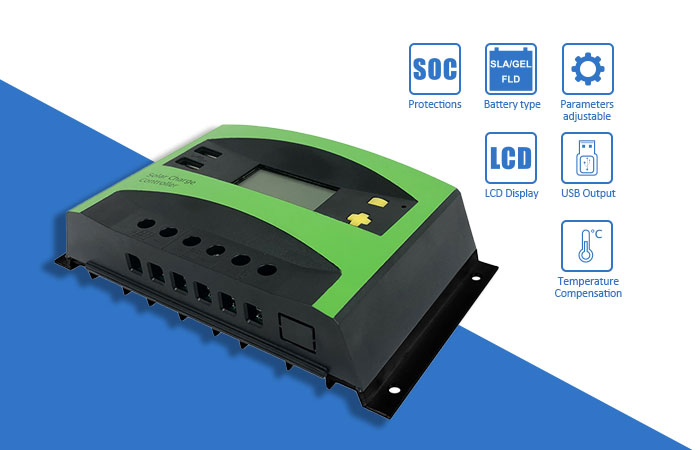

PWM Solar Charge controller for solar off-grid system

Features of PWM Solar Charge Controller

System voltage of battery 12/24/36/48V automatic recognition;
Intelligent 4 stages charging: Bulk, Absorption, Equalize, Float;

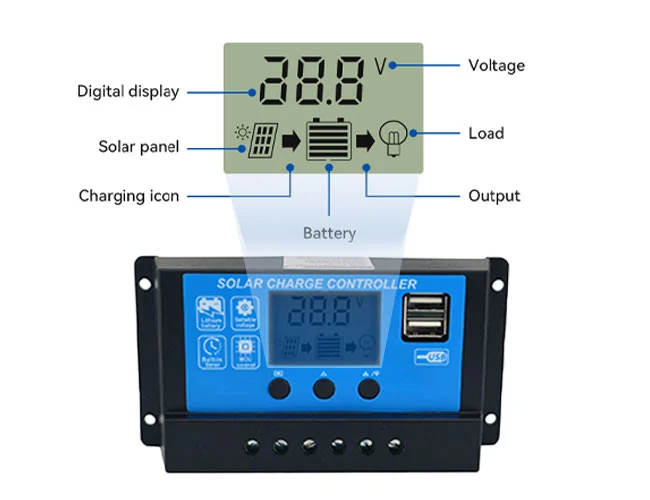

LCD display with Back-lighting shows device’s operating data and working condition;
Support more kinds of battery: Lead-acid battery and lithium battery;
Double USB output 5V/2A;

Intelligent design multiple security protection,

simple , safe, reliable.

Solar panel voltage drops down to match battery voltage

System voltage of battery 12/24/36/48V automatic recognition

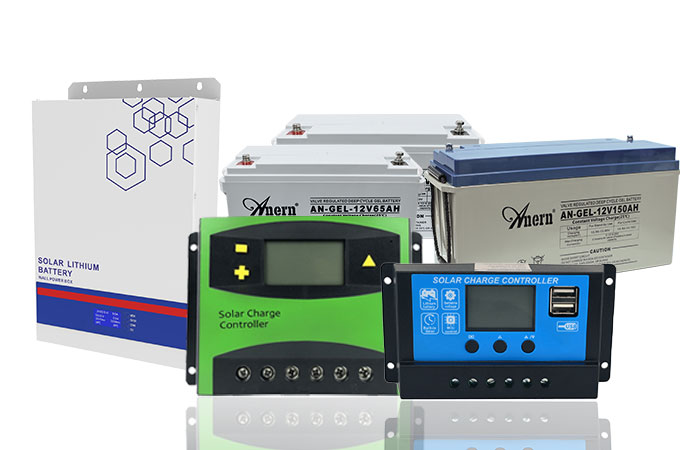

Support more kinds of battery

Lead-acid battery and lithium battery

Specification of PWM Solar Charge Controller

Item No.	DC Voltage(Auto)	Maximum Charge Current	PV Maximum Input Voltage	Carton Dimension	G.W	Remark
AN-ET20-10A	12/24V	10A	50V	425325225mm	9.8kg	Ampere display，no Ampere display，Aluminum plate heat dissipation
AN-ET20-20A		20A
AN-ET20-30A		30A
AN-AT20-10A	12/24V	10A	50V	505380210mm	12.8kg	Ampere display，no Ampere display，Aluminum plate heat dissipation
AN-AT20-20A		20A
AN-AT20-30A		30A
AN-AT40-30A	12/24V	30A	50V	415260355mm	14.7kg	charging and discharging Ampere display Large size copper terminal light control,time control double USB Aluminum plate heat dissipation
AN-AT40-40A	12/24V	40A	50V
AN-AT40-30A	12/24/48V	30A	100V
AN-AT40-40A	12/24/48V	40A	100V
AN-AT60-50A	12/24V	50A	50V	435365275mm	14.3kg	charging and discharging Ampere display Large size copper terminal light control,time control double USB Aluminum plate heat dissipation
AN-AT60-60A	12/24V	60A	50V
AN-AT60-50A	12/24/48V	50A	100V
AN-AT60-60A	12/24/48V	60A	100V
AN-MT2024-10A	12/24V	10A	50V	500370230mm	13.8kg	all-color LCD display, Alloy terminal, Ampere display
AN-MT2024-20A	12/24V	20A	50V
AN-MT4024-30A	12/24V	30A	50V
AN-MT4024-40A	12/24V	40A	50V
AN-MT6024-50A	12/24V	50A	50V	430385275mm	17.8kg
AN-MT6024-60A	12/24V	60A	50V
AN-MT6048-50A	12/24/48V	50A	100V
AN-MT6048-60A	12/24/48V	60A	100V
AN-VT2048-10A	12/24/36/48V	10A	100V	535380240mm	18kg	LCD display, Dual USB output， Ampere display
AN-VT2048-20A	12/24/36/48V	20A	100V	535380240mm	18kg
AN-VT3048-30A	12/24/36/48V	30A	100V	600445235mm	21kg
AN-VT4048-40A	12/24/36/48V	40A	100V	600445235mm	21kg
AN-VT5048-50A	12/24/36/48V	50A	100V	585445225mm	24.3kg
AN-VT6048-60A	12/24/36/48V	60A	100V	585445225mm	24.3kg
AN-VT8048-80A	12/24/36/48V	80A	100V	585445225mm	24.5kg
